3D Data Visualization with MATLAB Scatter3

Introduction to 3D Data Visualization using MATLAB Scatter3

3D data visualization is an essential technique for analyzing and interpreting complex datasets across various domains. Unlike traditional 2D representations, integrating a third dimension allows for a more comprehensive understanding of data interactions and relationships. By effectively visualizing data in three dimensions using MATLAB Scatter3, researchers and professionals can uncover patterns and insights that may remain hidden in conventional graphs.

In scientific research, for instance, 3D visualization plays a crucial role in illustrating spatial relationships in datasets such as geographical information systems (GIS), molecular structures, and astronomical data. These visualizations enable scientists to explore multidimensional datasets, facilitating hypothesis generation and testing through accessible representations of intricate phenomena. Engineering fields similarly benefit from 3D visualizations, as they assist in the design and analysis of complex systems such as mechanical parts, structures, and fluid dynamics. The ability to represent these elements in three-dimensional space can significantly enhance comprehension, promoting collaboration and innovation.

Moreover, business analytics increasingly relies on 3D data visualization to convey insights derived from multifaceted data sources. Marketing and sales teams can utilize 3D scatter plots to visualize customer segmentation, identifying target audiences effectively. Additionally, financial analysts can represent market trends and stock performances in a more engaging manner, allowing for better decision-making. The integration of interactive 3D plots not only makes data more accessible but also enhances storytelling capabilities, bridging the gap between raw data and stakeholder understanding.

Overall, the significance of 3D data visualization transcends various fields, making it a powerful tool for analysis and interpretation. In this landscape, MATLAB’s Scatter3 function emerges as a vital resource, empowering users to create detailed, three-dimensional visual representations of their data and unlocking new insights. The subsequent sections will explore the capabilities of MATLAB’s Scatter3, showcasing how it can elevate data visualization efforts.

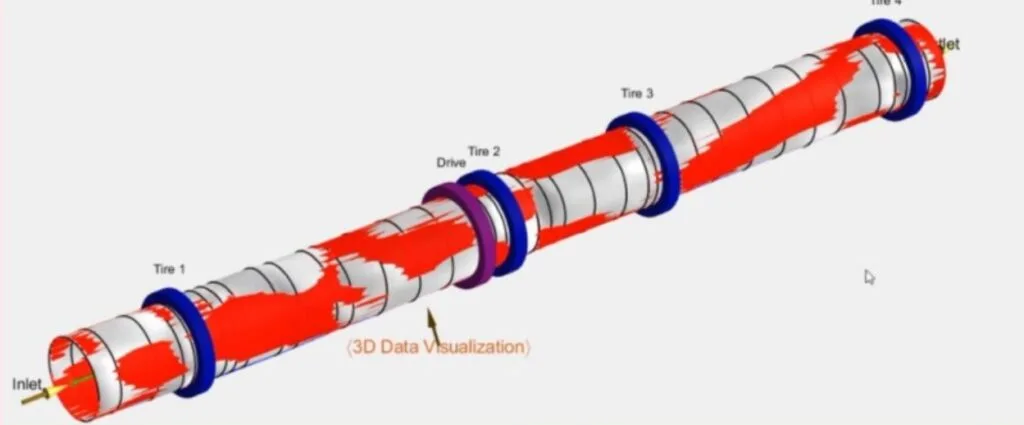

Matlab Scatter3 plots advance 3D data visualization

Understanding Scatter3 in MATLAB

The Scatter3 function in MATLAB is a versatile tool designed for visualizing three-dimensional data sets. It allows users to create scatter plots in a 3D space, where each point is represented by its coordinates (X, Y, Z) in a Cartesian plane. This function is particularly useful for visualizing relationships between variables in three-dimensional datasets, making it an invaluable asset for data analysis and representation.

The syntax for the Scatter3 function is straightforward. It typically follows the format scatter3(X, Y, Z, S, C), where X, Y, and Z are vectors that specify the coordinates of the data points. The S parameter determines the size of the markers, while the C parameter specifies their color. This flexibility enables researchers and analysts to convey multiple dimensions of information in a single visual representation.

Scatter3 can handle various types of data, including numerical, categorical, and even complex datasets, making it a versatile choice for different applications. Whether for academic research, engineering analysis, or business data insights, the ability to visualize data in three dimensions enhances the understanding of complex relationships and trends.

One of the primary advantages of using Scatter3 over alternative visualization methods is its simplicity. Compared to other 3D plotting functions, Scatter3 requires minimal configuration while still delivering high-quality visual output. This ease of use allows both novice and experienced users to efficiently create informative scatter plots, facilitating quicker decision-making based on visual data insights. Furthermore, its effectiveness in presenting 3D distributions assists in identifying patterns and outliers, contributing to a more nuanced analysis of the data.

Setting Up Your MATLAB Environment

To leverage the capabilities of 3D data visualization through MATLAB‘s Scatter3 function, it is crucial to properly set up your MATLAB environment. The first step in this process is ensuring that you have the correct installation of MATLAB that caters to your computational needs. You can download the latest version from the MathWorks website, choosing an option that is compatible with your operating system. It is important to note the installation requirements, such as minimum RAM and disk space, as these specifications affect the software’s performance during data handling.

Within the MATLAB environment, built-in toolboxes provide a host of functions that enhance data visualization. Specifically, for 3D plotting, users should ensure they have the necessary toolboxes installed, such as the Statistics and Machine Learning Toolbox and the Visualization Toolbox. These toolboxes come equipped with additional functions that complement Scatter3, enabling more advanced data analysis options and customization features. You can check the installed toolboxes by using the command ver in the MATLAB command window.

After confirming that your installation is complete and that the required toolboxes are available, it is advisable to configure your MATLAB environment for optimal usage. This may include adjusting the figure settings, such as resolution and color options, which enhance the visual representation of your data. Establishing a workflow that organizes your scripts and functions will also contribute to a more efficient coding experience. A well-structured directory with clear naming conventions makes it easier to navigate through your projects.

In summary, setting up your MATLAB environment involves proper installation, ensuring access to essential toolboxes, and configuring your settings for optimal data visualization. By completing these steps, you will be well-prepared to dive into the coding aspects of 3D data visualization using the Scatter3 function.

Creating Your First 3D Scatter Plot with MATLAB Scatter3

Creating a 3D scatter plot in MATLAB using the Scatter3 function is an excellent way to visualize multidimensional data. Follow these steps to create your first plot, enabling you to showcase your datasets effectively.

First, ensure you have a dataset ready for visualization. For this example, let’s work with a simple dataset containing three variables. These can represent coordinates in 3D space, such as the measurements of different samples. Create three vectors in MATLAB to represent the x, y, and z coordinates. Here’s a quick example:

x = rand(1, 100)
% 100 random values for x-axisy = rand(1, 100)
% 100 random values for y-axisz = rand(1, 100)
% 100 random values for z-axis

With your data prepared, the next step is to utilize the Scatter3 function. This function requires three inputs corresponding to the x, y, and z values defined earlier. The basic syntax for the function is as follows:

scatter3(x, y, z, 'filled');

This line of code creates a 3D scatter plot using your data points. The ‘filled’ option can be adjusted based on your preferences; for instance, you can change the marker size or color. After executing this command, you should see a 3D scatter plot displayed in the MATLAB figure window.

Next, customize your plot by adding labels and a title to enhance understanding and interpretation. For example, you can utilize the following commands:

xlabel('X-axis Label')
ylabel('Y-axis Label')
zlabel('Z-axis Label')
title('Title of the 3D Scatter Plot');

In summary, by following these steps, you can create your first 3D scatter plot using MATLAB’s Scatter3 function. This powerful visualization tool allows you to present and analyze your data in a more comprehensive manner, making it easier to identify patterns and insights within your datasets.

1. Prerequisites: Setting Up Your MATLAB Environment

Before you start, ensure you have:

  • MATLAB installed on your system.
  • A dataset with three variables representing x, y, and z coordinates.

Example Dataset:

% Sample data
x = rand(1, 100) * 10; % Random x values
y = rand(1, 100) * 10; % Random y values
z = rand(1, 100) * 10; % Random z values

2. Plotting Your First MATLAB scatter3 Chart

Use the following code to create a basic 3D scatter plot:

scatter3(x, y, z, 'filled');
title('Basic 3D Scatter Plot');
xlabel('X-axis');
ylabel('Y-axis');
zlabel('Z-axis');
grid on;

Explanation:

  • scatter3(x, y, z): Plots points using x, y, and z coordinates.
  • 'filled': Fills the markers for better visibility

3. Customizing Your Plot with MATLAB Scatter3

Changing Marker Size and Color

You can specify marker size and color for better clarity:

size = 50; % Marker size
color = z; % Color varies based on z values
scatter3(x, y, z, size, color, 'filled');
colorbar; % Add a color bar to indicate value range
title('Customized 3D Scatter Plot');

Pro Tip: Use Color Gradients for Clarity

For large datasets, apply a colormap to improve readability. Example: colormap('jet');.

4. Adding Transparency to Markers

Transparency helps visualize overlapping points in dense datasets:

scatter3(x, y, z, size, color, 'filled', 'MarkerFaceAlpha', 0.6);

5. Advanced Customization: Grouping Data in MATLAB Scatter3

Differentiate groups with distinct colors and markers:

group = randi([1, 3], 1, 100); % Assign random group labels (1, 2, or 3)
colors = lines(3); % Generate 3 distinct colors
hold on;
for i = 1:3
    scatter3(x(group == i), y(group == i), z(group == i), ...
        size, colors(i, :), 'filled');
end
hold off;
legend({'Group 1', 'Group 2', 'Group 3'});

7. Complete Example: Bringing It All Together with MATLAB Scatter3

Here’s a complete example with all the concepts applied:

% Data
x = rand(1, 200) * 10;
y = rand(1, 200) * 10;
z = rand(1, 200) * 10;
size = 40;
color = z;

% Plot
scatter3(x, y, z, size, color, 'filled', 'MarkerFaceAlpha', 0.7);
colormap('parula');
colorbar;
title('Comprehensive 3D Scatter Plot');
xlabel('X');
ylabel('Y');
zlabel('Z');
grid on;

Why Choose My Services for Data Science and Programming?

With years of experience in MATLAB and data visualization, I help professionals, researchers, and businesses unlock the full potential of their data. From creating custom visualizations to solving complex technical challenges, I deliver solutions tailored to your needs.

Need Help in Programming?

I provide freelance expertise in data analysis, machine learning, deep learning, LLMs, regression models, NLP, and numerical methods using Python, R Studio, MATLAB, SQL, Tableau, or Power BI. Feel free to contact me for collaboration or assistance!

Follow on Social

support@algorithmminds.com

ahsankhurramengr@gmail.com

+1 718-905-6406

Customizing Your 3D Scatter Plot with MALTAB Scatter3

Creating a basic scatter plot using MATLAB’s Scatter3 function is just the first step in visualizing your data effectively. Customizing this plot can significantly enhance the presentation and analytical capabilities of the data being displayed. Various customization options are available that allow users to modify marker types, colors, sizes, and also to add informative labels and modify axes, leading to a more intuitive understanding of the dataset.

One of the primary elements that can be customized is the marker type. MATLAB supports a variety of marker shapes such as circles, squares, and crosses, which can be specified using the ‘Marker’ property. By selecting a specific marker type, users can emphasize particular data points or differentiate between various categories within the dataset. Similarly, the ‘MarkerSize’ property can be utilized to adjust the size of the markers, where larger markers can draw attention to significant observations while smaller markers can be used to represent less critical data.

Additionally, color plays a crucial role in data visualization. With the ‘MarkerFaceColor’ and ‘MarkerEdgeColor’ properties, users can set colors that correspond to specific data values or groupings. This allows for an immediate visual correlation between colors and variable measurements, thereby aiding in faster data interpretation. Labels can also be added to enhance clarity. The ‘text’ function in MATLAB can be used to put labels next to points of interest, providing contextual information directly on the plot.

Finally, adjusting the axes is vital for clarity in any scatter plot. The ‘xlabel’, ‘ylabel’, and ‘zlabel’ functions allow users to assign clear labels to the respective axes, which further clarifies what each dimension represents. Customizing the axis limits with ‘xlim’, ‘ylim’, and ‘zlim’ ensures that the most relevant portions of the data are highlighted. By effectively utilizing these customization techniques in MATLAB, users can transform a simple scatter plot into a comprehensive and informative 3D visualization that facilitates deeper analysis.

Advanced Techniques with MATLAB scatter3

The MATLAB Scatter3 function is a powerful tool for creating three-dimensional scatter plots, and its capabilities can be significantly enhanced through the use of advanced techniques. One fascinating approach is the incorporation of interactive elements, which allows users to engage with their visualizations in a dynamic manner. By utilizing MATLAB’s GUI capabilities, developers can add sliders, buttons, and other controls to modify variables in real time, thereby facilitating a deeper understanding of the data being represented.

Additionally, embedding Scatter3 plots within larger figure contexts can greatly enrich the presentation of data. For instance, combining multiple Scatter3 visualizations in a grid or panel can allow for comparative analysis between different datasets or visualization styles. Using subplots alongside Scatter3 plots can also convey additional information, such as statistics or contextual text, enhancing the interpretive quality of the overall visual representation.

Animations play a critical role in data visualization, especially when representing changes over time. Users can leverage the capabilities of MATLAB to animate Scatter3 plots by iteratively updating the data points in the plot, thus presenting shifts in the data dynamically. This technique is particularly useful for time-series data, where the evolution of trends or patterns can be effectively illustrated, enabling viewers to observe temporal changes at a glance.

Moreover, combining these techniques—interactivity, embedding, and animation—results in a powerful data visualization approach. As practitioners further their skills in utilizing Scatter3, they unlock new dimensions in presenting complex data effectively. Whether through enhancing user engagement or presenting multiple datasets concurrently, these advanced techniques empower users to communicate data-driven insights more clearly and effectively.

Common Challenges and Troubleshooting

When utilizing MATLAB’s Scatter3 for 3D data visualization, users may encounter various challenges that can hinder their experience and results. One prevalent issue is related to data formatting. It is essential for users to ensure that the input data for the Scatter3 function is appropriately structured. Data should be provided as three separate vectors—X, Y, and Z—representing the coordinates of the points in three-dimensional space. Misalignment of these vectors can lead to erroneous or misleading visual outputs. Therefore, double-checking the dimensions and ensuring they correspond correctly can alleviate potential formatting pitfalls.

Another significant challenge arises when working with large datasets. Performance bottlenecks may occur, leading to rendering delays or crashes. To mitigate this, users can optimize their data by reducing the number of points displayed. This can be achieved through downsampling techniques, where a representative subset of the data is visualized instead of the entire dataset. Additionally, utilizing MATLAB’s built-in processor capabilities, such as parallelization, can enhance performance and speed during the plotting process.

Graphical representation concerns also present a challenge when using Scatter3. Users may struggle with choosing appropriate visualization parameters such as marker size, color, and transparency. These choices can significantly impact the clarity and interpretability of the visual representation. To overcome this, it is advisable to experiment with different styles and settings to find the optimal combination that effectively conveys the desired information and relationships within the data.

By being aware of these common challenges in using Scatter3, and by implementing the suggested troubleshooting techniques, users can enhance their 3D data visualization experience, leading to more effective and meaningful insights.

Real-World Applications of 3D Scatter Plots and MALTAB Scatter3

The utilization of 3D scatter plots extends across a multitude of disciplines, each benefiting from the robust capabilities of MATLAB Scatter3. One notable application is found in the field of healthcare, where researchers employ these kinetic visualizations for the analysis of clinical data. For instance, by plotting patient parameters such as age, blood pressure, and cholesterol levels in a tri-dimensional space, healthcare professionals can identify patterns and correlations that may indicate risk factors for various diseases. This approach enhances decision-making processes and facilitates the development of personalized treatment plans.

Another prominent application of 3D scatter plots is in the realm of environmental science. Researchers often utilize MATLAB Scatter3 to visualize spatial data collected from geographical surveys. By representing variables such as temperature, humidity, and carbon dioxide levels in three-dimensional space, scientists can effectively analyze trends over time, helping to identify changes in climate patterns. This information is crucial for implementing strategies aimed at addressing environmental concerns and promoting sustainability.

In the finance sector, professionals leverage 3D scatter plots to monitor market trends and investment performance. By plotting asset returns against risk levels and market capitalization, analysts can derive insights that inform portfolio management strategies. This visualization aids in identifying outliers and recognizing emerging patterns that may not be evident through traditional two-dimensional analytics.

Furthermore, the manufacturing industry benefits from 3D scatter plots through quality control processes. By visualizing production metrics, such as defect rates, throughput, and production costs, managers can pinpoint areas of concern and initiate corrective measures to optimize operations. Using MATLAB Scatter3 in this context allows for the identification of process inefficiencies that, when addressed, can lead to significant cost savings.

Overall, the applications of 3D scatter plots span various industries, significantly enhancing the effectiveness of data analysis and decision-making processes. By integrating MATLAB Scatter3 into their analytical toolkit, organizations can unlock deeper insights from their data, fostering more informed and strategic decisions.

Conclusion and Next Steps

In this blog post, we have explored the significant role of 3D data visualization using MATLAB Scatter3. This powerful tool allows users to represent complex datasets visually, providing insights that might not be apparent through other means. We discussed how effective visualization can enhance data analysis, facilitate better decision-making, and improve communication of findings with stakeholders. By leveraging the unique capabilities of MATLAB Scatter3, practitioners can create compelling graphics that illustrate multi-dimensional relationships and patterns embedded within their data.

As we conclude, it is essential to acknowledge that mastering 3D visualization is a continuous journey. For those looking to further their understanding and proficiency in MATLAB and data science, there are several next steps to consider. First, engaging in online courses can provide structured learning, diving deeper into the functionalities of MATLAB and data visualization techniques. Numerous platforms, including Coursera, edX, and Udemy, offer specialized programs tailored to varying skill levels.

Moreover, exploring online communities and forums such as MATLAB Central can foster collaboration and knowledge sharing. These resources allow users to interact with other practitioners, share their experiences, and seek assistance on specific challenges encountered in projects. Additionally, reviewing case studies and example projects can inspire innovative approaches to utilizing MATLAB Scatter3.

For a hands-on experience, consider undertaking personal projects or challenges that encourage the application of 3D visualization techniques. This practical engagement ensures that theoretical knowledge is reinforced through practice, thus solidifying your skills in data visualization. Taking these steps can significantly enhance your expertise in MATLAB and prepare you for more advanced data analysis tasks.
