Introduction to 3D Plotting in MATLAB
3D plotting in MATLAB is an essential technique that enables the visualization of complex datasets in three-dimensional space. This powerful functionality allows researchers and engineers to interpret patterns and relationships that may otherwise remain obscured in two-dimensional representations. As multidimensional data becomes increasingly common in various fields, mastering 3D plotting in MATLAB is pivotal for effective data presentation and analysis.
MATLAB provides a comprehensive suite of tools to create a diverse range of 3D plots. Some of the most commonly used types include surface plots, mesh plots, and volume visualizations. Surface plots are particularly notable for their ability to display functions of two variables and can be used to represent topographical data or complex mathematical relationships. Similarly, mesh plots allow for the visualization of surfaces with a wireframe representation; this offers a different perspective that can be particularly useful for analyzing complex geometries or function characteristics.
In addition to surface and mesh plots, scatter plots in 3D serve a critical role in displaying individual data points in three dimensions, which enables the user to gain insights into data distribution and clustering tendencies. Other types of 3D visualizations such as contour plots and quiver plots facilitate interpretations that are vital in engineering and scientific research. The versatility of these plotting tools ensures that various applications, including computational modeling, simulations, and data analysis, can leverage MATLAB effectively.
Furthermore, the implementation of 3D plotting in MATLAB is streamlined by intuitive functions and built-in libraries, which allow users to customize their visualizations according to specific requirements. Overall, understanding the options available and their applications is key to harnessing the full potential of data analysis through 3D visualization in MATLAB.
Need Help in Programming?
I provide freelance expertise in data analysis, machine learning, deep learning, LLMs, regression models, NLP, and numerical methods using Python, R Studio, MATLAB, SQL, Tableau, or Power BI. Feel free to contact me for collaboration or assistance!
Follow on Social
Setting Up MATLAB for 3D Plotting
To effectively utilize the 3D plotting capabilities in MATLAB, it is essential first to ensure that your MATLAB environment is properly configured. This includes verifying that necessary toolboxes are installed and that your version of MATLAB is up to date. The primary toolbox for 3D plotting in MATLAB is the MATLAB Graphics Toolbox, which offers extensive functions and capabilities for visualizing data in three dimensions.
Begin by launching MATLAB and navigating to the “Home” tab. Here, you can access the “Add-Ons” dropdown menu, where you can check for any required toolboxes related to 3D visualization. It is advisable to install the “MATLAB Graphics” toolbox if it is not already available in your environment, as it is integral for rendering sophisticated 3D plots. Checking for toolbox updates regularly can prevent compatibility issues and enhance your 3D plotting experience.
Next, ensure that your MATLAB application is updated to the latest version. This can be done by navigating to the “Help” menu and selecting the “Check for Updates” option. Keeping MATLAB updated not only improves its performance but also integrates the latest features, optimizations, and bug fixes related to 3D graphics. An updated MATLAB environment can handle complex datasets, providing you with the tools necessary to create stunning visualizations.
Before you begin your journey with 3D MATLAB plotting, familiarize yourself with its interface and built-in functions specific to 3D visualization. Functions such as plot3, surf, and mesh enable users to create various plot types, from simple line plots to intricate surface plots. Armed with an updated and well-set MATLAB environment, you will be ready to explore the full potential of 3D plotting functionalities offered by the software.
Learn MATLAB with Free Online Tutorials
Explore our MATLAB Online Tutorial, your ultimate guide to mastering MATLAB! his guide caters to both beginners and advanced users, covering everything from fundamental MATLAB concepts to more advanced topics.
Basic Commands for 3D Plotting
When working with 3D visualization in MATLAB, several fundamental commands facilitate the process of plotting data in three-dimensional space. Among these, the functions plot3, mesh, and surf are paramount for creating a variety of 3D plots. Understanding the syntax and parameters associated with these commands is essential for effective data representation.
The plot3 function is ideal for creating 3D line plots. The basic syntax involves three vectors as inputs: x, y, and z. These vectors denote the coordinates in the 3D space. For example, executing plot3(x, y, z) will display a line that connects the points defined by the vectors. Additionally, you can customize the appearance of the line using color and marker parameters to enhance readability and visual appeal.
The mesh function is utilized to create 3D mesh plots, which are particularly useful for visualizing surfaces defined by a grid. The command’s primary syntax involves creating matrices for X, Y, and Z. For instance, mesh(X, Y, Z) generates a wireframe mesh that outlines the surface represented by these matrices. It is crucial to ensure that X and Y are defined as a grid since this arrangement determines the structure of the mesh.
On the other hand, the surf function offers a more visually appealing representation of surfaces as it fills the triangular faces of the grid with color gradients. Similar to the mesh function, the syntax surf(X, Y, Z) produces a colored surface plot. Utilizing color mapping and shading options enhances the depiction of surfaces, allowing for the analysis of intricate data relationships.
Combining these functions provides a strong foundation for mastering 3D plotting in MATLAB, enhancing both the interpretability and presentation of data visualizations.
% Step 1: Create a grid of points in 3D space [X, Y] = meshgrid(-5:0.25:5, -5:0.25:5); % Create a grid of x and y values Z = sin(sqrt(X.^2 + Y.^2)); % Define Z as a function of X and Y
3D Surface Plot
% Step 2: 3D Surface Plot
figure; % Create a new figure window
surf(X, Y, Z); % Create a 3D surface plot
title('3D Surface Plot'); % Add title
xlabel('X-axis'); % Label the x-axis
ylabel('Y-axis'); % Label the y-axis
zlabel('Z-axis'); % Label the z-axis
colorbar; % Add color bar to show the value scale

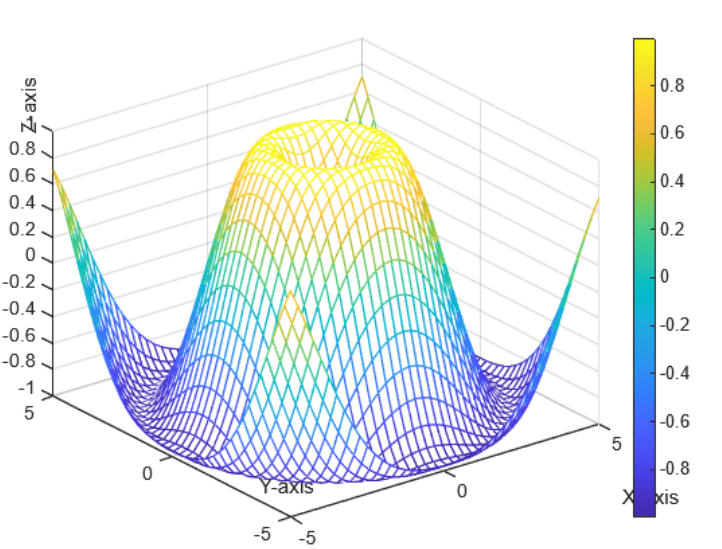

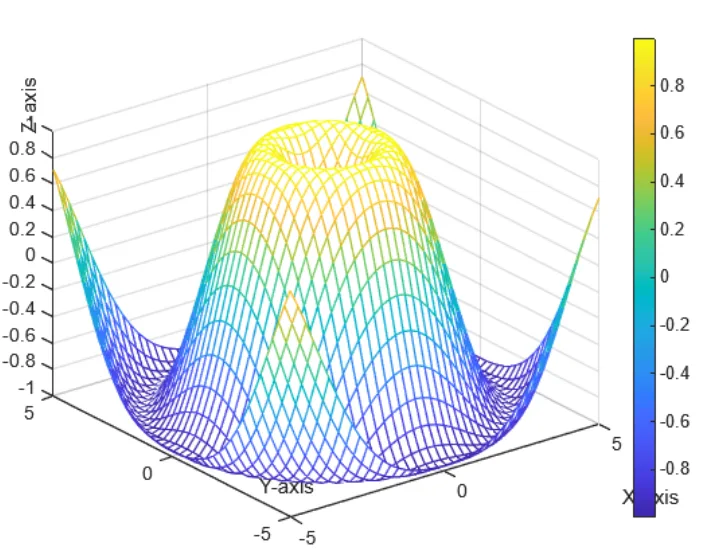

3D Mesh Plot
